3D Technical Visualization Design of Energy Storage Systems: Professional Expression from Engineering Structure to System Logic

With the rapid development of the global new energy industry, Energy Storage Systems (ESS) have gradually become a key infrastructure in power systems and new energy applications. Ranging from photovoltaic energy storage, grid-side energy storage, industrial and commercial energy storage to microgrid systems, energy storage equipment not only undertakes the function of energy regulation but also serves as an important support for the stable operation of new energy systems.

From an engineering and technical perspective, however, an energy storage system itself is a highly integrated complex system, which internally involves multiple engineering modules such as battery structural design, power electronic systems, thermal management systems, control systems and Energy Management Systems (EMS). For equipment manufacturers, system integrators and customers, it is often difficult to fully understand the system structure and technical logic solely through 2D drawings or product photos. Therefore, 3D visualization design of energy storage systems has gradually become an important method for industrial product display and technical expression.

Through engineering-grade 3D modeling and animation technology, the internal structure, energy flow paths and system operation logic of energy storage systems can be clearly expressed, thereby helping enterprises achieve more efficient technical communication and product display.

CMuse 3D Animation Works  Project Display Images

Engineering Complexity of Energy Storage System Structure

Technically, a complete energy storage system usually consists of several core subsystems, including:

•   • Battery Module

•   • Battery Rack

•   • Battery Management System (BMS)

•   • Power Conversion System (PCS)

•   • Energy Management System (EMS)

•   • Thermal Management System

•   • High-Voltage (HV) Distribution System

•   • Battery Container

Complex electrical connections and control logic exist among these systems. For example, during the operation of an energy storage system, the BMS is responsible for monitoring battery status (State of Charge, State of Health, voltage, temperature), the PCS for realizing bidirectional energy conversion between direct current and alternating current, and the EMS for the scheduling and energy management of the entire system.

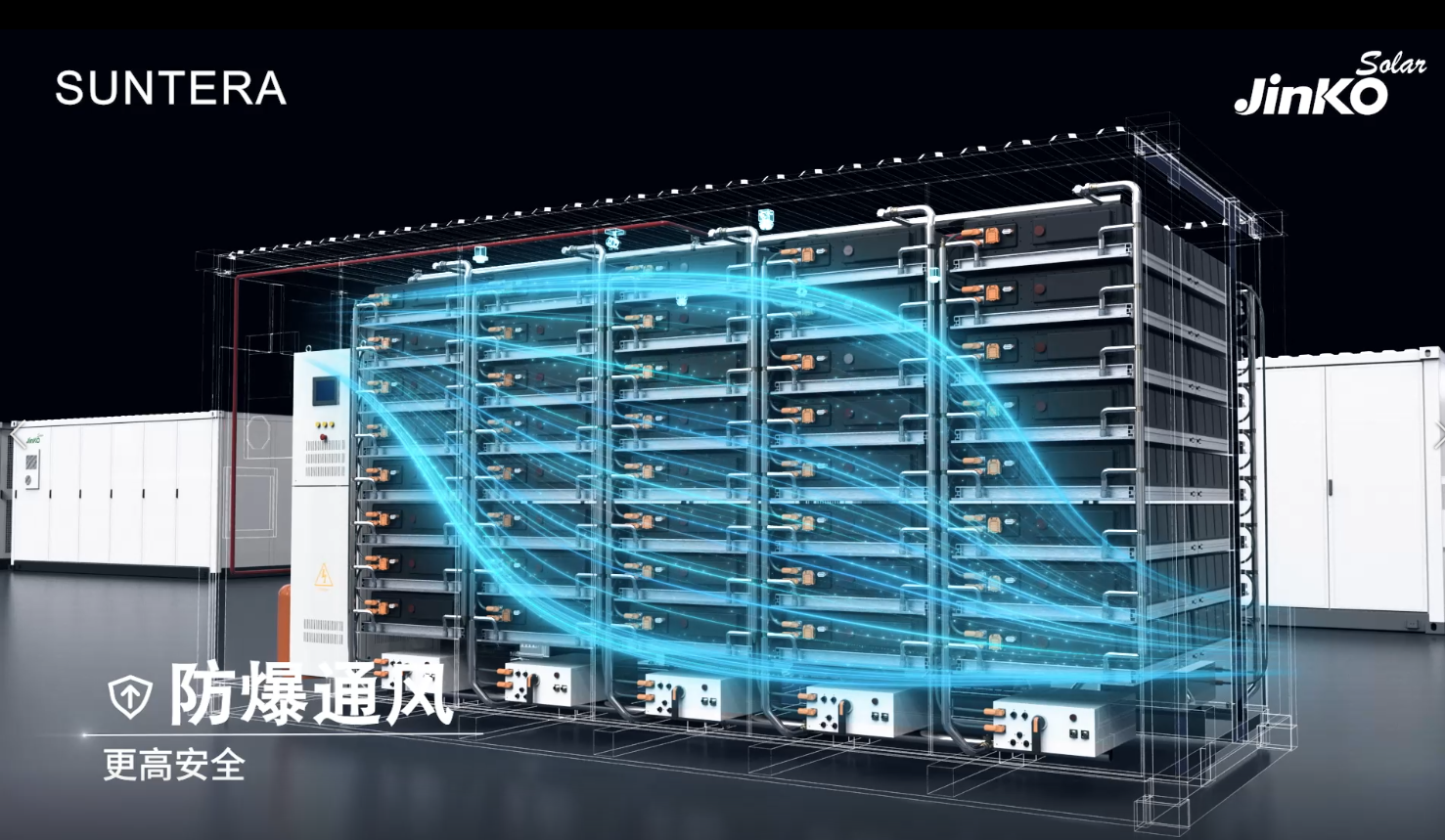

CMuse 3D Animation Works  Project Display Images

Core Application Scenarios of 3D Animation for Energy Storage Systems

In the new energy industry, 3D visualization animation for energy storage systems has been widely applied in various commercial and technical scenarios:

  • Product launch and marketing

  • Exhibition and brand promotion

  • Technical training and engineering communication

  • nvestment and project demonstration

It is often difficult to fully express the system hierarchy and operation logic if only technical documents or 2D schematic diagrams are used to show these structural relationships. With 3D engineering visualization design, however, the system structure can be disassembled layer by layer, and the relationships between devices can be demonstrated dynamically.

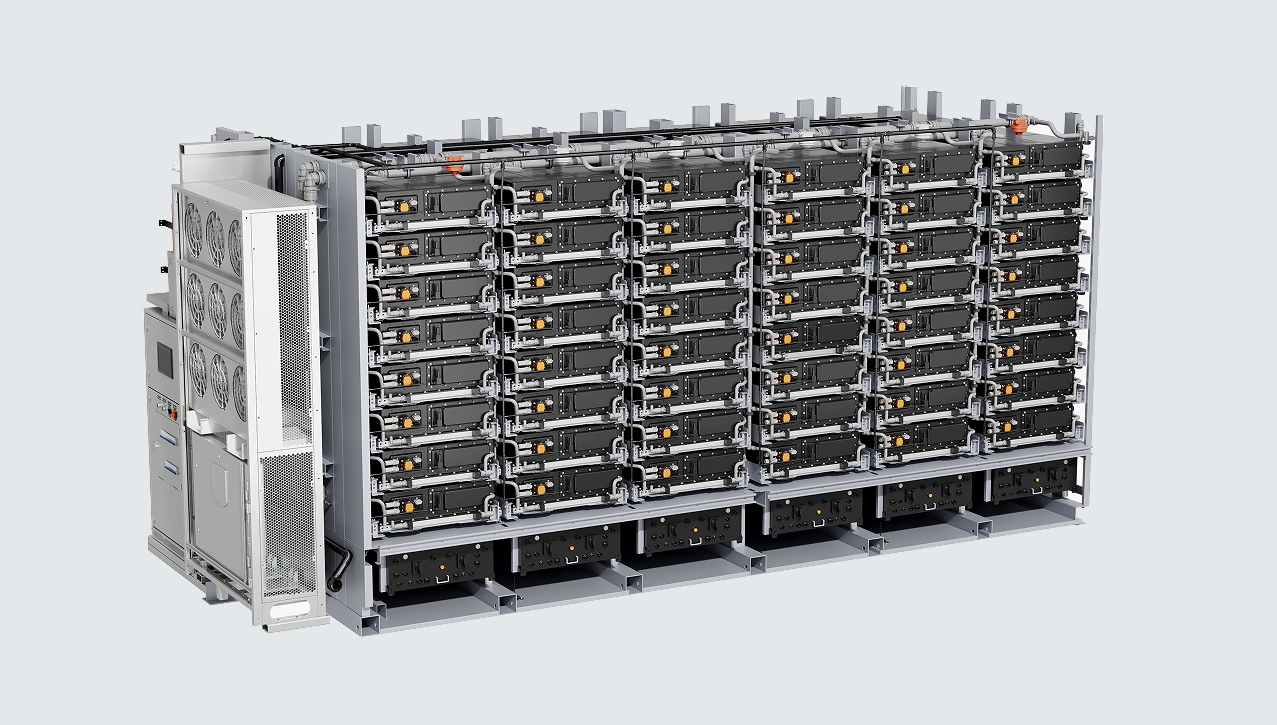

CMuse 3D Animation Works  Project Display Images

Advantages of 3D Animation for Energy Storage Systems in Technical Communication

From an engineering design perspective, 3D visualization is not only a visual display tool but also a technical communication tool, with its advantages mainly reflected in the following aspects:

  • Improved efficiency of technical comprehension: Complex systems can be intuitively displayed through animation, reducing the difficulty of understanding.

  • Highlighted technical selling points of products: Technical advantages such as battery safety design, thermal management structure and system modular design can be emphatically demonstrated via animation.

  • Enhanced efficiency of cross-team communication: 3D animation can establish a unified technical understanding among engineering teams, sales teams and customers.

  • Enabled technical communication in the global market: Animation can transcend language barriers and make technical information more intuitive.

CMuse 3D Animation Works  Project Display Images

CMuse3D's Design Experience in Energy Storage Technology Visualization

In the new energy and industrial fields, CMuse3D specializes in helping enterprises display complex engineering systems through 3D visualization technology.

For energy storage projects, CMuse3D typically carries out design from the following dimensions:

•   • Realistic restoration of engineering structures

•   • Clear expression of system logic

•   • Visualization of energy flow

•   • Industrial-grade visual style design

In this way, energy storage products can achieve a balance between technical expression and visual presentation, making complex systems more clear and understandable.

For new energy enterprises, 3D technical visualization is not only a marketing tool but also an important means of engineering and technical expression. With the development of the energy storage industry, 3D animation will play an increasingly important role in product display, technical training and project demonstration.

If you are looking for a partner that truly understands industrial products and is equipped with capabilities in 3D animation, 3D visualization and professional visual expression, welcome to visit our official website: www.cmuse3d.com
